ProductsIridium 9575

Post DOCK 9575

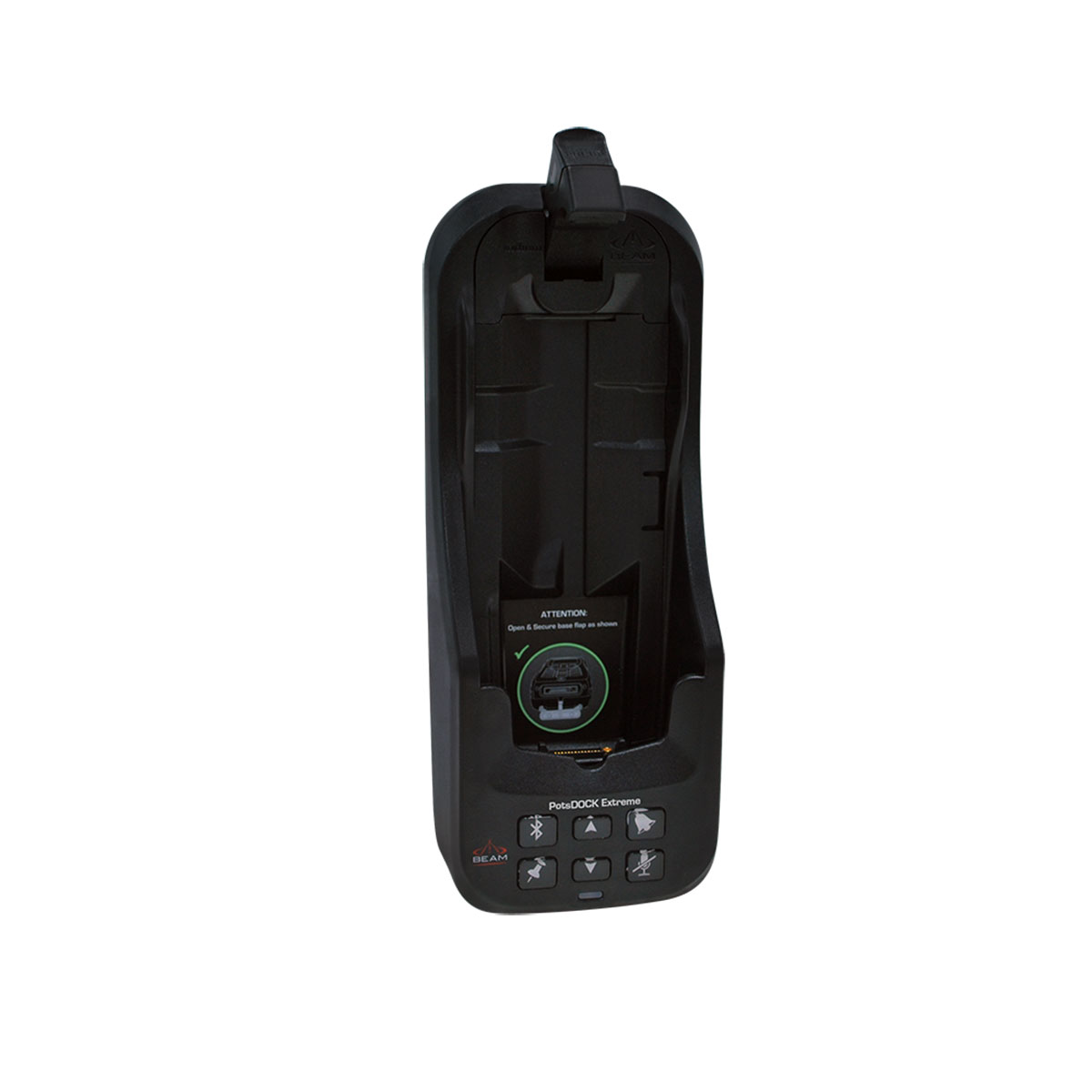

Beam's PotsDOCK Extreme is a compact docking station specifically designed to support RJ11, Bluetooth and tracking. PotsDOCK allows the Iridium Extreme handset* to be connected with an POTS/RJ11 interface enabling standard corded, cordless or DECT handset connection or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones like a standard phone network.
PotsDOCK Extreme provides extra features such as Bluetooth for voice connectivity along with tracking and alert which can be configured to support periodic polling or emergency alert reporting. The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.


PotsDOCK also supports the use of an optional compact Beam privacy handset that can be attached next to the PotsDOCK for added convenience if required. The dock features phone charging, a USB connection for data connection, integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the dock making










    • KEY FUTURES
    • POWER SPECIFICATIONS
  • KIT CONTENTS

• Slim line compact installation
• Integrated Bluetooth connectivity
• POTS/RJ11 interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 handset)
• USB data interface
• Accessory/Ignition sense
• 9-32V DC power input
• AC Plug pack included 110/240 input
• Iridium and GPS Connectors
• PABX Compatible (analogue)
• 2 year repair or replacement warranty


  • • Standby 75mA 1.1W
    • Transmit + Charging 0.4A 6W
    • Sleep Mode 25mA 0.3W
    • Rated Input 9-32V DC 2A max
    • AC Power Pack 100-250V AC 50-60Hz
    • Output 15V DC 60W
    INTERFACES
    Alarm Mode
    • Normally-Closed' Loop IN to OUT Up to 50m
    cable run / multiple buttons in series. Brown
    wire is Input,Green wire is Output.
    RJ11/POTS
    • RJ11 connector/2-wire, up to 600m.
    • Auto Impedance - or country selectable.
    • Adjustable Dial & Busy Tones. Ringer output
      56Vrms, 5REN load. Adjustable Ringer
    • Frequency/Cadence.
    Privacy Handset (Line In/Out)
    • 4-pole 3.5mm jack, ground referenced in/ out with
  •   cup-switch. In biased with ~2Vdc via 2k2.
  •    Out 40mW power into 16-32Ω
    Data Port (USB)
    • USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant,
  •   CDC Serial profile
    Alarm (Alert) Loop
    • 1 input, 1 output
    Power Cable
    • 4-way Microfit socket. +Vin, 0V (GND), and ACC
  •   (On/Off Sense). 9-32VDC tolerant. ACC
  •   sense: High(1) > +7Vdc and < +32Vdc Low (0) 0V < +5Vdc

• LiteDOCK Extreme Cradle
• Universal Mounting Bracket (RAM)
• Earpiece Extension Cable
• Quick Start Guide
