ProductsIridium 9575

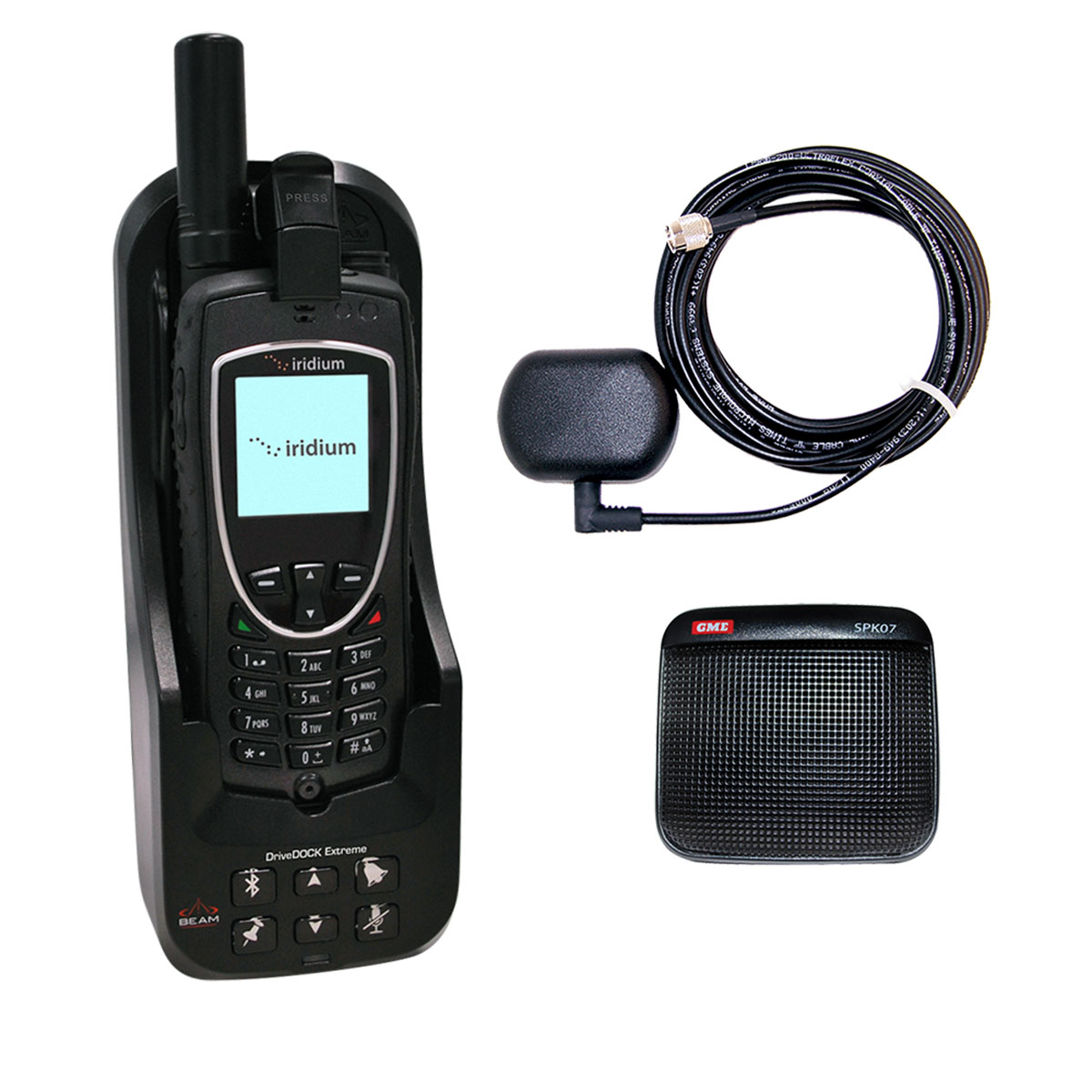

Drive Dock Extreme



Beam's DriveDOCK Extreme hands-free docking solution provides a high quality transport installation for the Iridium Extreme handset*. The docking Station has in-built echo cancelling and full duplex Technologies to provide superior voice quality and Professional handsfree or privacy calls for any vehicle, boat or aircraft. The Iridium Extreme handset fits securely in the dock, which features USB data connectivity, phone charging and integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the DriveDOCK ready for use.


The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency button whilst docked.
DriveDOCK Extreme also supports the use of an optional Intelligent Privacy Handset, that replicates the full functionality of the Extreme handset in another location.


* Iridium Extreme handset sold separately










    • KEY FUTURES
    • POWER SPECIFICATIONS
  • KIT CONTENTS

• Slim line compact installation
• Integrated Bluetooth connectivity
• Hands-free installation
• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 Handset Functions)
• USB data interface
• RS232 D9 Serial Interface
• Accessory/Ignition sense
• Horns Alert
• Iridium/GPS Antenna Connectors
• Handsfree
• AC Plug Pack (optional)


  • • Standby 70mA 0.84W
    • Transmit + Charging 0.7A 8.4W
    • Sleep Mode 5mA 60mW
    • Rated Input 9-32V DC 2A max
    INTERFACES
    Alarm Mode
    • Normally-Closed' Loop IN to OUT Up to 50m
    cable run / multiple buttons in series. Brown
    wire is Input,Green wire is Output.
    RJ11/POTS
    • RJ11 connector/2-wire, up to 600m.
    • Auto Impedance - or country selectable.
    • Adjustable Dial & Busy Tones. Ringer output
  •   56Vrms, 5REN load. Adjustable Ringer Frequency/Cadence.
    Privacy Handset (Line In/Out)
    • 4-pole 3.5mm jack, ground referenced in/out
  •   with cup-switch. In biased with ~2Vdc via 2k2.
  •   Out 40mW power into 16-32Ω
    External Speaker and Microphone
      One horizontal 2-pin Microfit connector on the
      cable loom for speaker and one vertical 2-pin
      Microfit connector for microphone.
    Data Port (USB)
    • USB Mini-B 5-pin female (USB Slave). USB
      2.0 compliant, CDC Serial profile
    Alarm (Alert) Loop
    • 1 input, 1 output
    Power Cable
    • 4-way Microfit socket. +Vin, 0V (GND), and
      ACC (On/Off Sense). 9-32VDC tolerant. ACC
      sense: High(1) > +7Vdc and < +32Vdc Low (0) 0V < +5Vdc

• DriveDOCK Extreme
• DC Power Cable/Fuse Kit
• Universal Mounting Bracket (RAM)
• Speaker & Microphone
• User Manual
• Quick Start Guide
