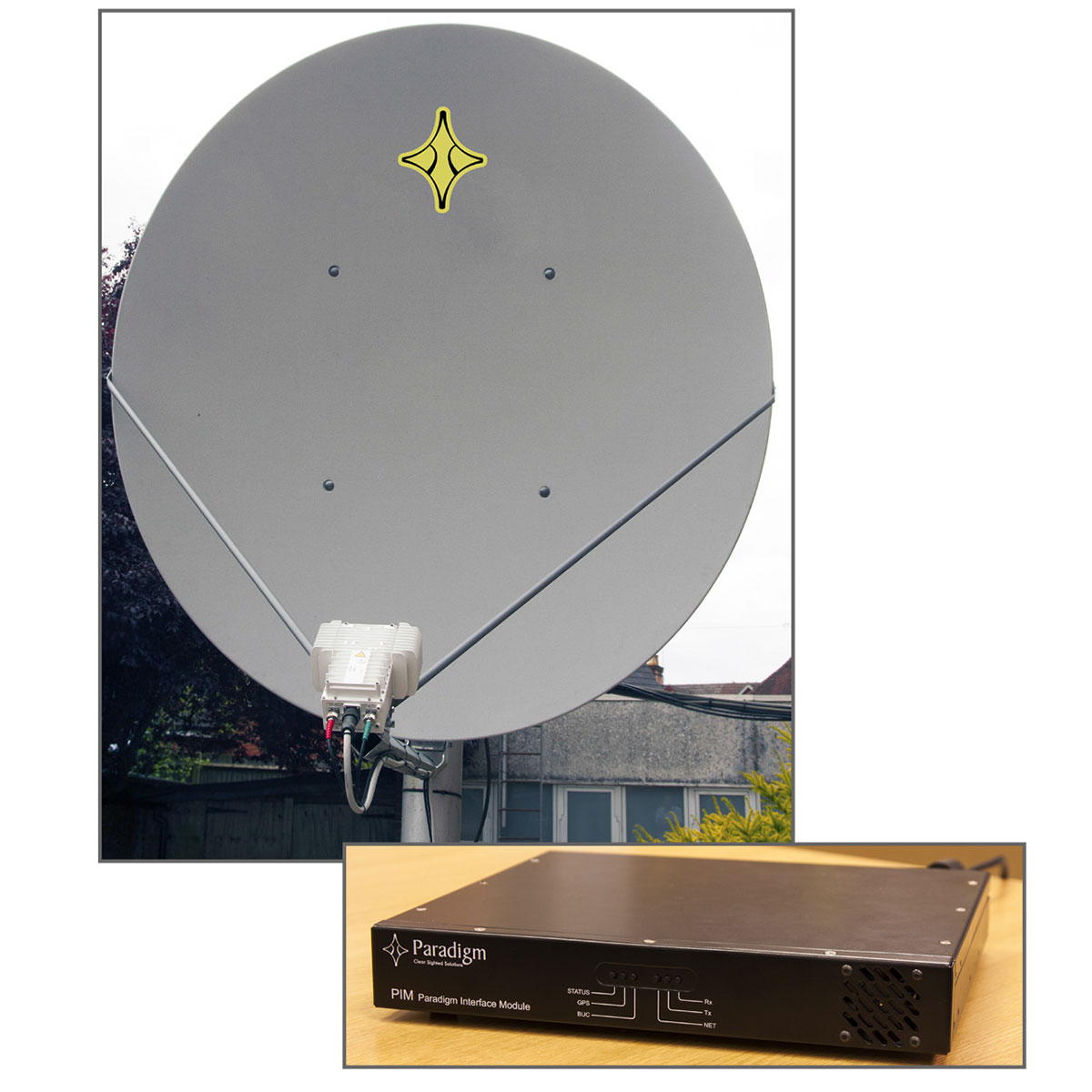

- Reflector
• Reflektor 1.8 m Glass
- Fibre Reinforced Polyester SMC
- • Optics One Piece Offset Feed Prime Focus
• Feed Custom Circular
• Mast Pipe Interface 12.7 Cmm (5.0")
- SCH 40 Pipe
- • Mast Pipe Interface 60mm (2.38")
- Diameter (Std.)
• 51mm (2") Diameter (Opt.)
- Performance
• Frequency Range (GHz) GX Compliant
• Polarisation Circular, RH or LH
• Hız to 5Mbps kadar Uplink / 50Mbps kadar • Downlink
• Harici Güç 100-230V (50-60Hz)
• Ingress Koruma: PIM IDU IP52
• TXVR (BUC/LNB) IP65
- • Radiation Pattern Compliance GX Certified
- Mechanical
• Azimuth Adjustment: 360°
- Continuous; ±5° Adjustment
• Elevation Adjustment 8° to 90° Continuous
• Polarisation RHCP/LHCP, Manual Change
• Package weight:12kgs approx.
• Elevation Adjustment 8° to 90° Continuous
|
Environmental
• Wind: İşlevsel 50mph (80km/h), Dayanma Gücü
125mph (200km/h)
• Operating Temperature
• Antenna: -50°C to +80°C, Indoor PIM 0°C to
+45°C, Outdoor PIM-25°C to +55°C
• Humidity: Indoor PIM 40 to 90% (Condensing),
• Outdoor PIM 0 to 95% (Condensing)
• 98cm Antenna with feed,
• El/Az Antenna Mount,
• 5W Transceiver / BUC & LNB, RF Cable(30m),
• Indoor modem ,(Outdoor modem optional available),
• Installation Guide and Operators Manual. |
